Spring-Security-Oauth2如何增加自定义授权模式

发表于 更新于 分类于

在 oauth2 的授权模式中有4种：

  • 授权码模式
  • 隐式授权模式
  • 密码模式
  • 客户端模式

但如果我们想要增加一个自定义的授权模式，又该怎么做呢？

相关的源码是这样的：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
public class CompositeTokenGranter implements TokenGranter {

	private final List<TokenGranter> tokenGranters;

	public CompositeTokenGranter(List<TokenGranter> tokenGranters) {
		this.tokenGranters = new ArrayList<TokenGranter>(tokenGranters);
	}

	//四种授权模式+刷新令牌的模式根据grant_type判断
	public OAuth2AccessToken grant(String grantType, TokenRequest tokenRequest) {
		for (TokenGranter granter : tokenGranters) {
			OAuth2AccessToken grant = granter.grant(grantType, tokenRequest);
			if (grant!=null) {
				return grant;
			}
		}
		return null;
	}

	public void addTokenGranter(TokenGranter tokenGranter) {
		if (tokenGranter == null) {
			throw new IllegalArgumentException("Token granter is null");
		}
		tokenGranters.add(tokenGranter);
	}

}

oauth2 端点配置类部分源码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
public final class AuthorizationServerEndpointsConfigurer {

    // 省略部分代码

    private TokenGranter tokenGranter;

    public AuthorizationServerEndpointsConfigurer tokenGranter(TokenGranter tokenGranter) {
    	this.tokenGranter = tokenGranter;
    	return this;
    }

    // 默认的四种授权模式+刷新令牌的模式的配置
    private TokenGranter tokenGranter() {
    	if (tokenGranter == null) {
    		tokenGranter = new TokenGranter() {
    			private CompositeTokenGranter delegate;

    			@Override
    			public OAuth2AccessToken grant(String grantType, TokenRequest tokenRequest) {
    				if (delegate == null) {
    					delegate = new CompositeTokenGranter(getDefaultTokenGranters());
    				}
    				return delegate.grant(grantType, tokenRequest);
    			}
    		};
    	}
    	return tokenGranter;
    }

    // 默认的四种授权模式+刷新令牌的模式的配置
    private List<TokenGranter> getDefaultTokenGranters() {
    	ClientDetailsService clientDetails = clientDetailsService();
    	AuthorizationServerTokenServices tokenServices = tokenServices();
    	AuthorizationCodeServices authorizationCodeServices = authorizationCodeServices();
    	OAuth2RequestFactory requestFactory = requestFactory();

    	List<TokenGranter> tokenGranters = new ArrayList<TokenGranter>();
    	// 添加授权码模式
    	tokenGranters.add(new AuthorizationCodeTokenGranter(tokenServices, authorizationCodeServices, clientDetails,
    			requestFactory));
    	// 添加刷新令牌的模式
    	tokenGranters.add(new RefreshTokenGranter(tokenServices, clientDetails, requestFactory));
    	// 添加隐式授权模式
    	ImplicitTokenGranter implicit = new ImplicitTokenGranter(tokenServices, clientDetails, requestFactory);
    	tokenGranters.add(implicit);
    	// 添加客户端模式
    	tokenGranters.add(new ClientCredentialsTokenGranter(tokenServices, clientDetails, requestFactory));
    	if (authenticationManager != null) {
    	    // 添加密码模式
    		tokenGranters.add(new ResourceOwnerPasswordTokenGranter(authenticationManager, tokenServices,
    				clientDetails, requestFactory));
    	}

    	// 可以复制相关代码，然后这里添加自定义的授权模式

    	return tokenGranters;
    }
}

看到这里就可以发现 spring 已经把默认的四种授权模式+刷新令牌的模式的配置在代码中写死了!

那又如何添加自定义的授权模式呢？

我的思路是这样的：

直接把这部分的代码复制，在其中添加自定义的授权模式。

我直接把密码模式复制，将其中的 GRANT_TYPE 的值改为 sms_code,然后使用 /oauth/token?grant_type=sms_code&scope=read&username=user&password=123456 来验证结果。

自定义授权模式：SmsCodeTokenGranter

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
/**
 * @author fengxuechao
 * @version 0.1
 * @date 2019/5/17
 */
public class SmsCodeTokenGranter extends AbstractTokenGranter {

    // 仅仅复制了 ResourceOwnerPasswordTokenGranter，只是改变了 GRANT_TYPE 的值，来验证自定义授权模式的可行性
    private static final String GRANT_TYPE = "sms_code";

    private final AuthenticationManager authenticationManager;

    public SmsCodeTokenGranter(
            AuthenticationManager authenticationManager,
            AuthorizationServerTokenServices tokenServices,
            ClientDetailsService clientDetailsService,
            OAuth2RequestFactory requestFactory) {
        this(authenticationManager, tokenServices, clientDetailsService, requestFactory, GRANT_TYPE);

    }

    protected SmsCodeTokenGranter(
            AuthenticationManager authenticationManager,
            AuthorizationServerTokenServices tokenServices,
            ClientDetailsService clientDetailsService,
            OAuth2RequestFactory requestFactory,
            String grantType) {
        super(tokenServices, clientDetailsService, requestFactory, grantType);
        this.authenticationManager = authenticationManager;
    }

    @Override
    protected OAuth2Authentication getOAuth2Authentication(ClientDetails client, TokenRequest tokenRequest) {
        Map<String, String> parameters = new LinkedHashMap<String, String>(tokenRequest.getRequestParameters());
        String username = parameters.get("username");
        String password = parameters.get("password");
        // Protect from downstream leaks of password
        parameters.remove("password");

        Authentication userAuth = new UsernamePasswordAuthenticationToken(username, password);
        ((AbstractAuthenticationToken) userAuth).setDetails(parameters);
        try {
            userAuth = authenticationManager.authenticate(userAuth);
        } catch (AccountStatusException ase) {
            //covers expired, locked, disabled cases (mentioned in section 5.2, draft 31)
            throw new InvalidGrantException(ase.getMessage());
        } catch (BadCredentialsException e) {
            // If the username/password are wrong the spec says we should send 400/invalid grant
            throw new InvalidGrantException(e.getMessage());
        }
        if (userAuth == null || !userAuth.isAuthenticated()) {
            throw new InvalidGrantException("Could not authenticate user: " + username);
        }

        OAuth2Request storedOAuth2Request = getRequestFactory().createOAuth2Request(client, tokenRequest);
        return new OAuth2Authentication(storedOAuth2Request, userAuth);
    }
}

授权模式配置类：TokenGranterConfig

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
/**
 * @author fengxuechao
 * @version 0.1
 * @date 2019/5/17
 */
@Configuration
@Profile("inMemory")
public class TokenGranterConfig {

    @Autowired
    private ClientDetailsService clientDetailsService;

    @Autowired
    private UserDetailsService userDetailsService;

    @Autowired
    private AuthenticationManager authenticationManager;

    @Autowired
    private TokenStore tokenStore;

    @Autowired
    TokenEnhancer tokenEnhancer;

    private AuthorizationCodeServices authorizationCodeServices;

    private boolean reuseRefreshToken = true;

    private AuthorizationServerTokenServices tokenServices;

    private TokenGranter tokenGranter;

    /**
     * 授权模式
     *
     * @return
     */
    @Bean
    public TokenGranter tokenGranter() {
        if (tokenGranter == null) {
            tokenGranter = new TokenGranter() {
                private CompositeTokenGranter delegate;

                @Override
                public OAuth2AccessToken grant(String grantType, TokenRequest tokenRequest) {
                    if (delegate == null) {
                        delegate = new CompositeTokenGranter(getDefaultTokenGranters());
                    }
                    return delegate.grant(grantType, tokenRequest);
                }
            };
        }
        return tokenGranter;
    }

    /**
     * 程序支持的授权类型
     *
     * @return
     */
    private List<TokenGranter> getDefaultTokenGranters() {
        AuthorizationServerTokenServices tokenServices = tokenServices();
        AuthorizationCodeServices authorizationCodeServices = authorizationCodeServices();
        OAuth2RequestFactory requestFactory = requestFactory();

        List<TokenGranter> tokenGranters = new ArrayList<TokenGranter>();
        // 添加授权码模式
        tokenGranters.add(new AuthorizationCodeTokenGranter(tokenServices, authorizationCodeServices, clientDetailsService, requestFactory));
        // 添加刷新令牌的模式
        tokenGranters.add(new RefreshTokenGranter(tokenServices, clientDetailsService, requestFactory));
        // 添加隐士授权模式
        tokenGranters.add(new ImplicitTokenGranter(tokenServices, clientDetailsService, requestFactory));
        // 添加客户端模式
        tokenGranters.add(new ClientCredentialsTokenGranter(tokenServices, clientDetailsService, requestFactory));
        if (authenticationManager != null) {
            // 添加密码模式
            tokenGranters.add(new ResourceOwnerPasswordTokenGranter(authenticationManager, tokenServices, clientDetailsService, requestFactory));
            // 添加自定义授权模式（实际是密码模式的复制）
            tokenGranters.add(new SmsCodeTokenGranter(authenticationManager, tokenServices, clientDetailsService, requestFactory));
        }
        return tokenGranters;
    }

    /**
     * TokenServices
     *
     * @return
     */
    private AuthorizationServerTokenServices tokenServices() {
        if (tokenServices != null) {
            return tokenServices;
        }
        this.tokenServices = createDefaultTokenServices();
        return tokenServices;
    }

    /**
     * 授权码API
     *
     * @return
     */
    private AuthorizationCodeServices authorizationCodeServices() {
        if (authorizationCodeServices == null) {
            authorizationCodeServices = new InMemoryAuthorizationCodeServices();
        }
        return authorizationCodeServices;
    }

    /**
     * OAuth2RequestFactory的默认实现，它初始化参数映射中的字段，
     * 验证授权类型(grant_type)和范围(scope)，并使用客户端的默认值填充范围(scope)（如果缺少这些值）。
     *
     * @return
     */
    private OAuth2RequestFactory requestFactory() {
        return new DefaultOAuth2RequestFactory(clientDetailsService);
    }

    /**
     * 默认 TokenService
     *
     * @return
     */
    private DefaultTokenServices createDefaultTokenServices() {
        DefaultTokenServices tokenServices = new DefaultTokenServices();
        tokenServices.setTokenStore(tokenStore);
        tokenServices.setSupportRefreshToken(true);
        tokenServices.setReuseRefreshToken(reuseRefreshToken);
        tokenServices.setClientDetailsService(clientDetailsService);
        tokenServices.setTokenEnhancer(tokenEnhancer);
        addUserDetailsService(tokenServices, this.userDetailsService);
        return tokenServices;
    }

    /**
     * 添加预身份验证
     *
     * @param tokenServices
     * @param userDetailsService
     */
    private void addUserDetailsService(DefaultTokenServices tokenServices, UserDetailsService userDetailsService) {
        if (userDetailsService != null) {
            PreAuthenticatedAuthenticationProvider provider = new PreAuthenticatedAuthenticationProvider();
            provider.setPreAuthenticatedUserDetailsService(new UserDetailsByNameServiceWrapper<PreAuthenticatedAuthenticationToken>(userDetailsService));
            tokenServices.setAuthenticationManager(new ProviderManager(Arrays.<AuthenticationProvider>asList(provider)));
        }
    }
}

授权认证服务端点配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
package com.fengxuechao.examples.auth.config.inmemory;
/**
 * @author fengxuechao
 * @version 0.1
 * @date 2019/5/8
 */
@Slf4j
@EnableAuthorizationServer
@Configuration
@Profile("inMemory")
public class AuthorizationServerConfigInMemory extends AuthorizationServerConfigurerAdapter {

    // 省略部分代码

    @Autowired
    private TokenGranter tokenGranter;

    /**
     * 认证服务器节点配置
     *
     * @param endpoints
     * @throws Exception
     */
    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
        endpoints
                .tokenGranter(tokenGranter) // 四种授权模式+刷新令牌的模式+自定义授权模式
                .tokenStore(tokenStore)
                .approvalStore(approvalStore)
                .userDetailsService(userDetailsService)
                .authenticationManager(authenticationManager)
                .setClientDetailsService(clientDetailsService);
    }
}

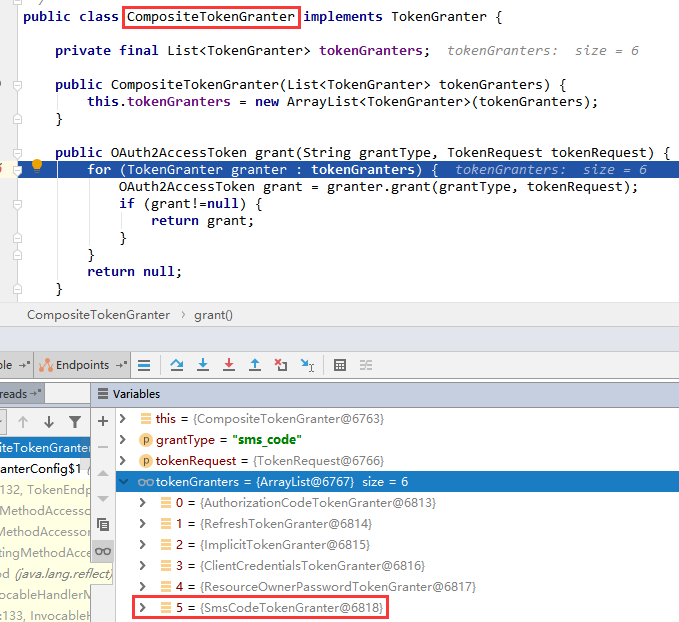

演示效果

在这里插入图片描述

request
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
POST http://localhost:8080/oauth/token?grant_type=sms_code&scope=read&username=user&password=123456

HTTP/1.1 200
X-Application-Context: application:inMemory
Cache-Control: no-store
Pragma: no-cache
X-Content-Type-Options: nosniff
X-XSS-Protection: 1; mode=block
X-Frame-Options: DENY
Content-Type: application/json;charset=UTF-8
Transfer-Encoding: chunked
Date: Tue, 18 Jun 2019 07:13:12 GMT

{
  "access_token": "19f2e44a-6c9a-45c4-be7e-0aada6a0a9e6",
  "token_type": "bearer",
  "refresh_token": "f59336a8-03c4-4c85-bc31-16c6d80f1381",
  "expires_in": 359,
  "scope": "read",
  "organization": "userWqTI"
}

Response code: 200; Time: 335ms; Content length: 190 bytes
